Kubik Lite

Kubik Lite

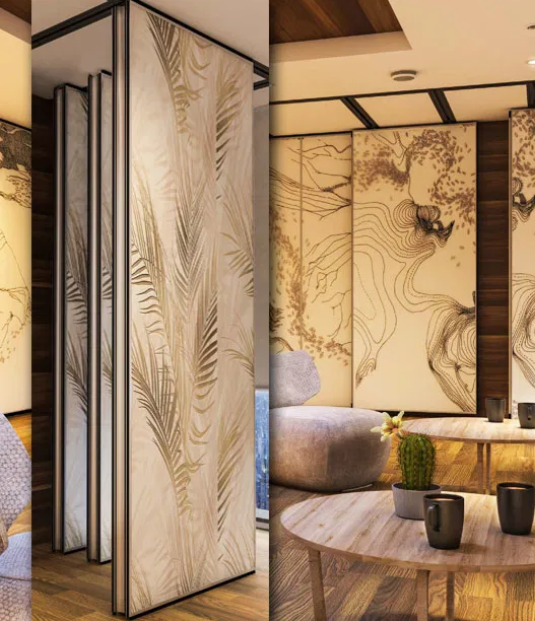

The Acoustic W100/85/65 LITE is a range of high performance & aesthetically pleasing acoustic movable walls, used to create maximum flexible space division in offices, meeting rooms, schools, colleges, hotel conferences & function suites. It consists of individually operated top hung panels requiring no floor tracks. It can provide sound insulation of 35 dB to 50 dB and the height of the walls can be up to 12 meters. Single or double pass doors can be integrated.

Additional information

Technical Specifications
  • Type: Acoustic 100/85/65
  • Panel Thickness: 100/65/85mm
  • Panel Height: 1800mm - 12000mm
  • Panel Width: 600mm - 2000mm
  • Frame Construction: Aluminium/MS Steel
  • Surface Board: 9mm/12mm/16mm
  • Vertical Profiles: Anodized aluminium with magnetic strips
  • Horizontal Profiles: Silver aluminum/EPDM
  • Doors: Single or Double
  • Acoustic Rating: 35 dB - 50 dB
